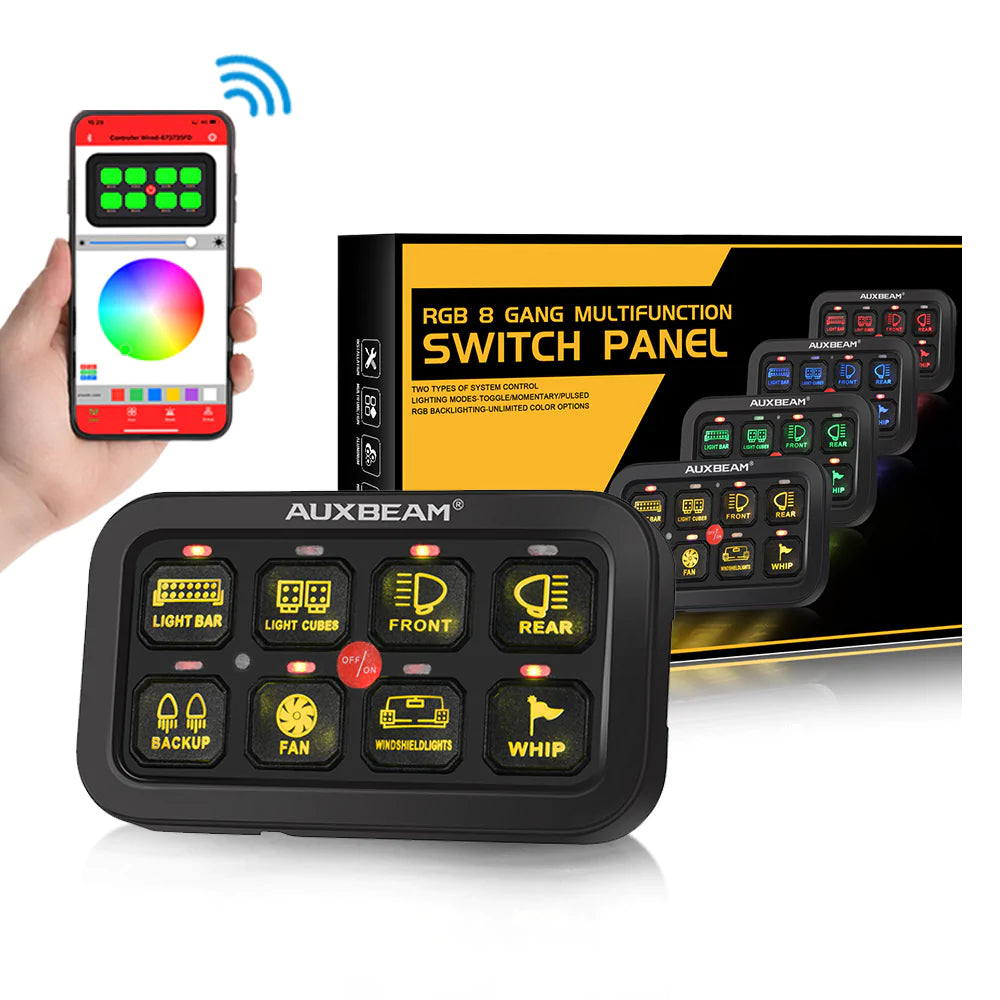

The New RGB Auxbeam switch panel is now available!
We have do some big upgrades on the switch panel! The latest system can be operated via switch panel or smartphone. It’s not limited to just controlling the “ON/OFF” of the LED Lights or electrical devices. The Switch Panel can change the backlit color and lighting modes to have fun programming with Auxbeam's latest RGB switch panel!
Functions:
-
RGB backlight - Unlimited color options match dash lighting and vehicle
-
3 mode setting - Toggle/ Momentary/ Pulsed
-
Bluetooth APP control - Access to accessories no matter whether you are in the vehicle (The QR code of APP can be found in the picture)
-
Group setting - Set up a group via APP to control 2 or more lights at the same time
-
DIY switch panel - 60pcs stickers/ 200 default icons/ phone album photos
Specifications:
- Working voltage: DC 12-24V
- Max current: 60A
- Rated voltage: 12V 20A / 24V 10A
- Operating at 12 Volts: max power rating of 720W
- Operating at 24 Volts: max power rating of 1200W
- Switch operation: On-Off
- Operating temperature: -40°C - +105°C
- Waterproof rating: IP65
Features:
- 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
- 2 control methods - Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.
- 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
~RED: Toggle, Constant light mode
~BLUE: Momentary, Press & hold the button to turn on, then release the button to turn off
~GREEN: Pulsed, Flash mode
-
RGB backlight color. Adjustable backlit color and brightness to match your vehicle.
-
Backlit brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
-
Customize your own switch panel with 60 universal stickers.
-
DIY button icon on APP. 200 default icons or photo from phone album.
-
Setup group. Manage multiple accessories in your custom groups. Set up 2 or more accessories in a group and control them at the same time.
-
Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Power sports, Marine, ATV, UTV, SUV, Heavy-duty machines, etc.
-
Waterproof IP65, high sensitivity, stability and strong anti-interference ability
-

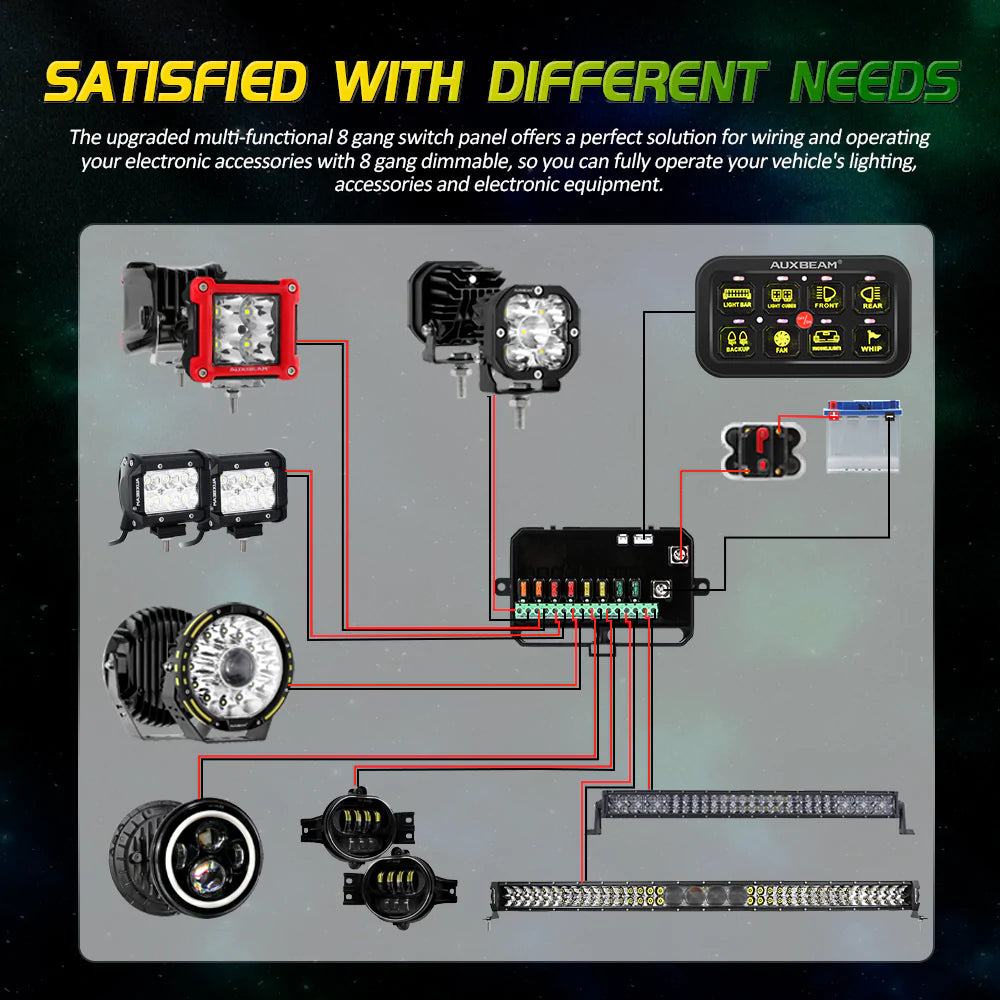

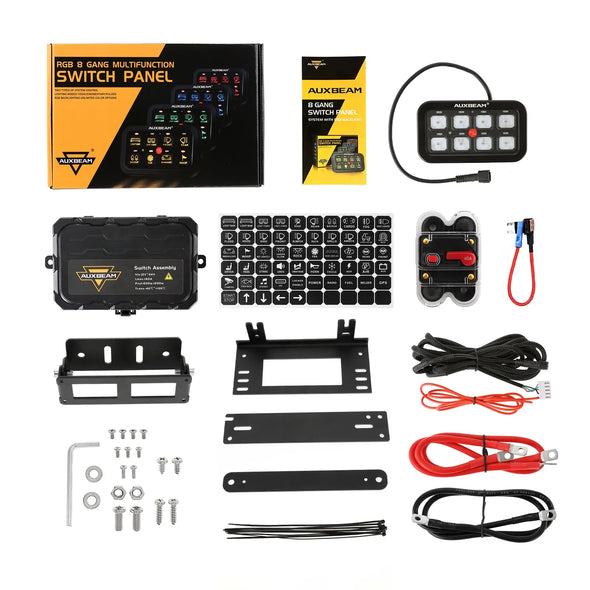

Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily. Two types of mounting brackets, you can install anywhere you need, such as the dash panel, center console, overhead sunglasses holder, etc.
Bluetooth connection requirements:
-
Compatible with IOS & Android devices
-
IOS 9.0 or newer version, Android 4.5 newer version
-
Download the “Switch panel” app from Apple store or Google Play Store (free download). Scan QR code on the instructions.
-
If your Android device can not connect to the APP, please turn on GPS positioning and allow “Switch Panel” to access your phone’s location while using the APP.
